AGA Fully Turbulent Flow

This is one of the most recommended and used equations for this type of flow, being able to estimate with high precision flow and pressure drop values if pipe roughness is known with correctness. It has been used for comparison among the different flow equations as a reference basis because it is fundamental to the definition of the corresponding application ranges and errors.

Similar to the Colebrook Equation, the AGA Equation uses a slightly modified transmission factor in order to obtain a value for the pressure drop using the General Flow Equation. The transmission value for the AGA equation is the following:

This equation is also known as the Von Karman equation for rough pipe flow.
𝐹 − Transmission Factor
𝑘 − Pipe Roughness
𝐷 − Internal Diameter (in)

𝑄 − Flow Rate (FT³/day)
𝐶_𝑄 − 38.774
𝑇_𝑏 −Temperature Base (°R)
𝑃_𝑏 − Pressure Base (psi)
𝑇_𝑓 − Gas Flowing Temperature (°R)
𝐷 − Internal Diameter (in)
𝑘 − Pipe Roughness
𝑃₁ − Upstream Pressure (psi)
𝑃₂ − Downstream Pressure (psi)
𝐺 − Gas Specific Gravity
𝑍 − Compressibility Factor
L_e − Pipe Segment Length including Expansion (mi)
𝑇_𝑓 − Gas Flowing Temperature (°R)

𝑠 − Elevation adjustment parameter
C_S − 0.0375
𝑍 − Compressibility Factor
𝑇_𝑓 − Gas Flowing Temperature (°R)
∆𝐻𝐺 − Change in Elevation (ft)

𝐿_𝑒 − Pipe Segment Length including Expansion (mi)
𝑠 − Elevation adjustment parameter

𝑉 − Velocity (ft/sec)
𝑄_ℎ − Volumetric flow rate (scf/hr)
𝐷 − Internal Diameter (in)
𝑃_𝑎𝑣𝑔 − Average Pipeline Pressure (psia)

𝐅𝐨𝐫 𝐬𝐦𝐚𝐥𝐥 𝐩𝐫𝐞𝐬𝐬𝐮𝐫𝐞 𝐝𝐫𝐨𝐩 𝑷𝟐 > 𝟎.𝟖𝑷𝟏:

𝐅𝐨𝐫 𝐥𝐚𝐫𝐠𝐞 𝐩𝐫𝐞𝐬𝐬𝐮𝐫𝐞 𝐝𝐫𝐨𝐩:

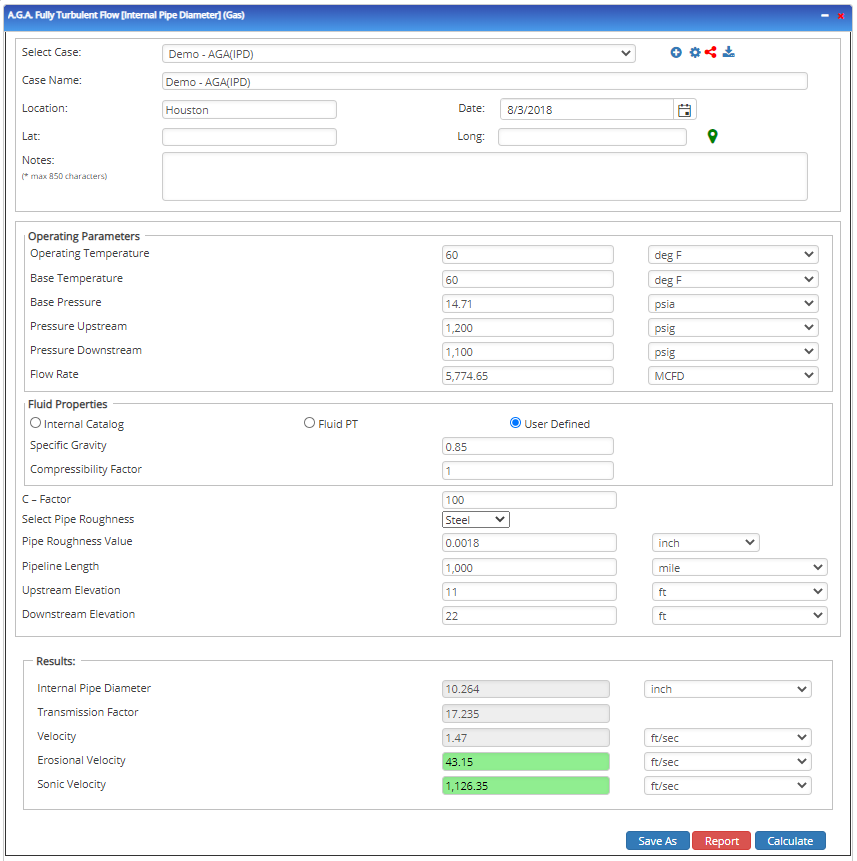

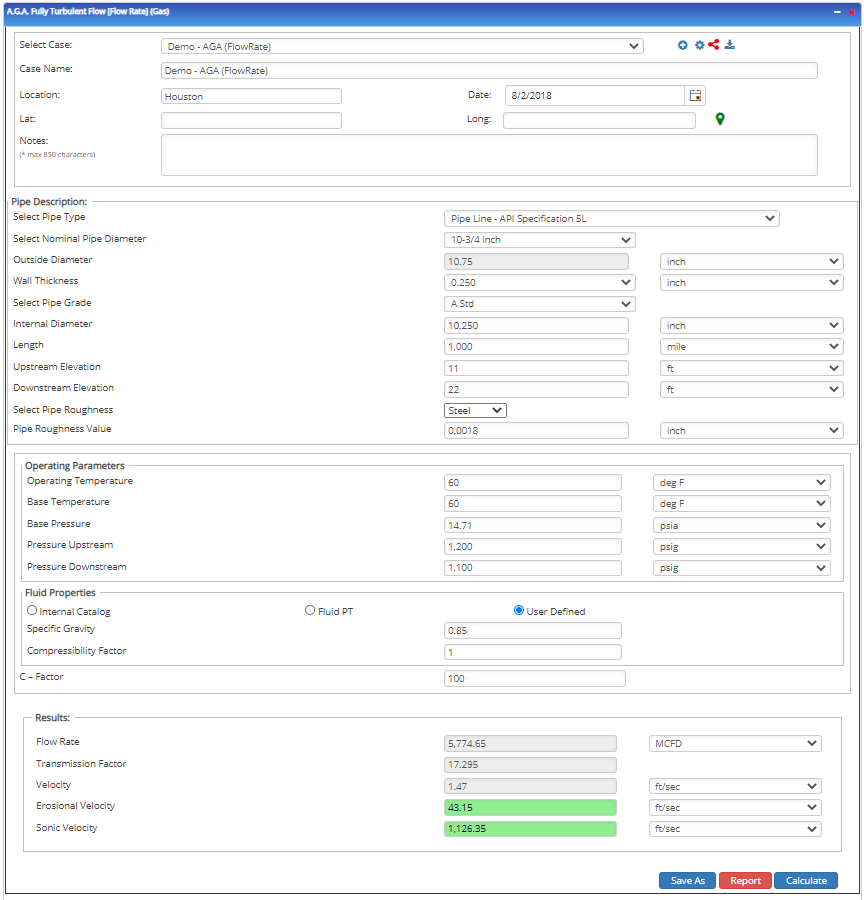

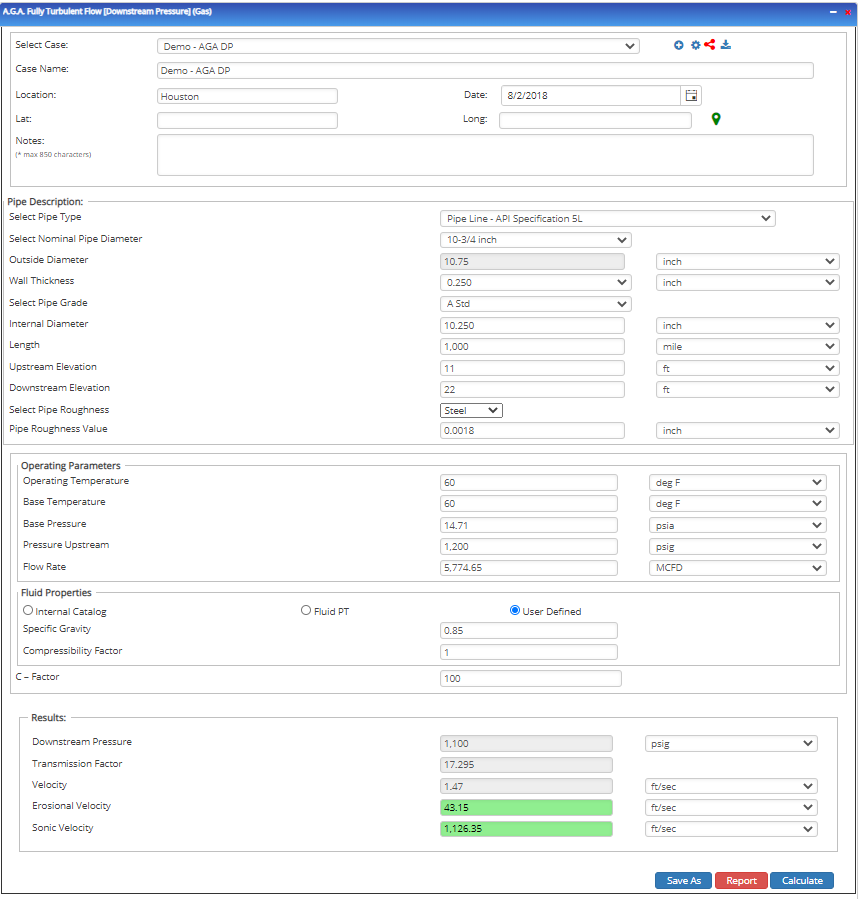

Input Parameters

To create a new case, click the “Add Case” button
Select the Unknown and desired Flow Equation
Enter Case Name, Location, Date, and any necessary notes
Fill out all required fields
Make sure the values you are inputting are in the correct units
Click the CALCULATE button

Temperature base(°F)
Pressure base(psia)
Gas Flowing Temperature(°F)
Gas Specific Gravity
Compressibility Factor
Pipeline Efficiency Factor
Upstream Pressure(psig)
Flow Rate(MCFD)
Internal Pipe Diameter(in)
Length of Pipeline(mi)
Upstream Elevation(ft)
Downstream Elevation(ft)

Outputs/Reports

View the results
If an input parameter needs to be edited be sure to hit the CALCULATE button after the change
To SAVE, fill out all required case details then click the SAVE button
To rename an existing file, click the SAVE As button. Provide all case info then click SAVE
To generate a REPORT, click the REPORT button
The user may export the Case/Report by clicking the Export to Excel/PowerPoint icon
To delete a case, click the DELETE icon near the top of the widget.
