This routine exports GASWorkS customer, node, or pipe data to an ESRI shapefile (SHP) for use in GIS applications such as ESRI ArcGIS. It is run from the Export item in the Utilities menu, and its progress is shown in the Export Log. A model must be open with the GDI Window displayed before starting.
GDI Commands
Export A SHP File – Customer, Node, Or Pipe
Customer, node, or pipe data from GASWorkS can be exported to a SHP file.
- From the Utilities menu, select the Export item.

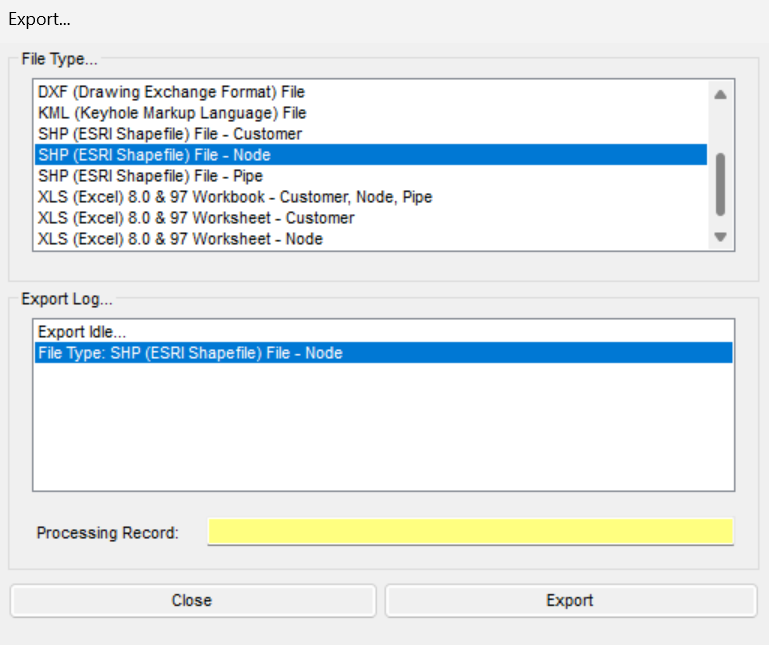

- The Export screen is displayed. Select one of the “SHP (ESRI Shapefile) File” items from the File Type list. Click the Export button.
- The Save screen is displayed with a default File name and location. Either accept the default File name and location or change it. Click the Save button.
Note: If using an existing file, a message will be displayed asking whether to overwrite the file; respond appropriately. - The Projection Specification screen is displayed. Either type or select the projection file to be used. Click the Continue button.
Note: If exporting customer data, a message will be displayed asking whether to export the services. Click the Yes button to export the services to a line-style SHP file; the Filename will end in “_s.shp”. Or, click the No button to export the customers only. - The Export screen is displayed again. The Export Log section will display the status of the Export routine. When the routine is complete, click the Close button.
This routine is run by selecting the Export item from the Utilities menu and choosing one of the SHP (customer, node, or pipe) file types; it has no GDI Command Line alias.
Notes
- A shapefile consists of several files. The essential files are a “shape” format file, ending in a (.shp) extension, which contains the spatial or geographic data, and an “attribute” format file, ending in a (.dbf) extension, which contains the attribute data associated with the graphical features. A shapefile can only contain one feature style. That is, a shapefile can only contain point or line features, but not both. Exporting pipe or service data creates an arc (line) style file. Exporting customer or node data creates a point file.
- The default naming convention assigns the first letter of the chosen feature to the end of the model name. For example, a pipe SHP file would end in “_p.shp.”
- Shapefiles can be imported or opened by a graphical information system (GIS) and CAD programs. The shapefile is the standard file format used by ESRI ArcGIS software.
Notes & Considerations
- This routine assumes that GASWorkS has been started, a model is open, and the GDI Window is displayed.
- If an existing file is selected on the Save screen, a message will be displayed asking whether to overwrite the file; respond appropriately.
- The Export Log section of the Export screen displays the status of the routine; when the routine is complete, click the Close button.
See Also
- Example: Importing DXF & Working with Shapefiles
- Exporting Model Data (CSV, DBF & XLS)
